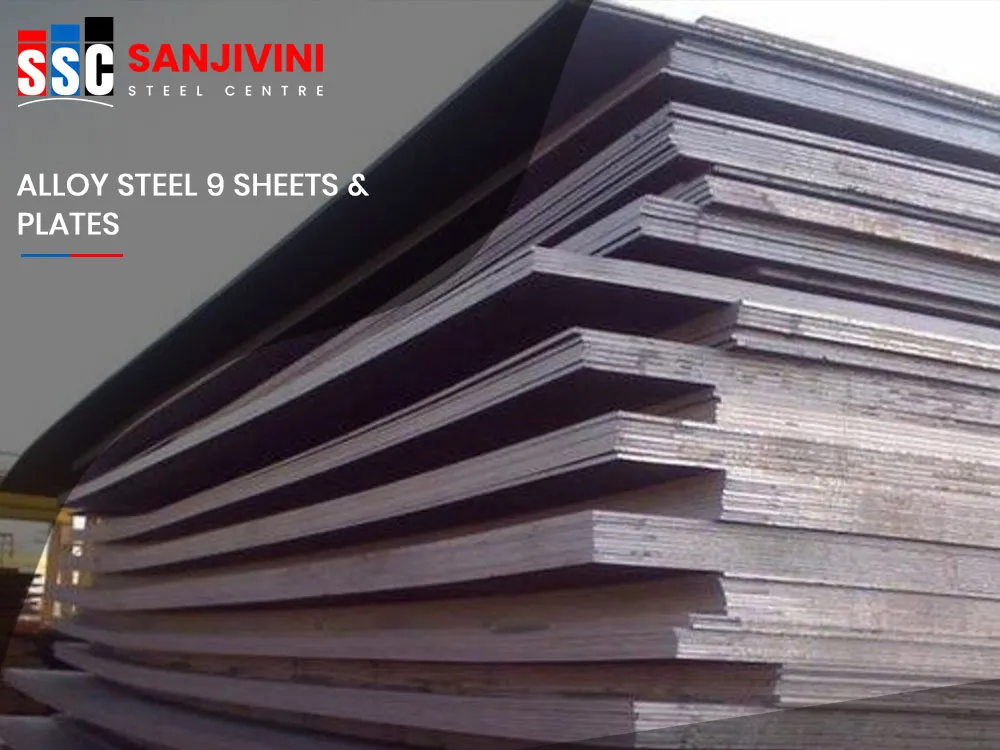

Alloy Steel 9 Sheets & Plates are high-strength flat products designed for applications requiring excellent durability, toughness, and resistance to high temperatures and pressure. Manufactured using premium chromium-molybdenum alloy steel, these sheets and plates offer superior mechanical properties along with enhanced resistance to oxidation, corrosion, and wear. Their robust structure ensures reliable performance in demanding industrial environments such as power plants, refineries, and heavy engineering sectors.
Alloy Steel 9 Sheets & Plates are widely used for their excellent strength and ability to perform under harsh operating conditions. These sheets and plates maintain structural integrity even under high stress and temperature variations. Their alloy composition enhances resistance to scaling and corrosion, ensuring long service life. Additionally, they offer good weldability and fabrication properties, making them suitable for a wide range of industrial applications.
Enquire Now| Standard | ASTM A387 and ASME SA387 |
|---|---|
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4050mm, etc |
| Thickness | 1 mm To 300 mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Finish | Hot-rolled plate (HR), cold-rolled sheet (CR), 2B, 2D, BA No. 8; and SATIN (Met with Plastic Coating) |
| Grade | C | Mn | Si | P | S | Cr | Mo |
|---|---|---|---|---|---|---|---|
| Alloy Steel Gr 9 | 0.15 max | 0.30-0.60 | 1.0 max | 0.030 max | 0.030 max | 8.0 – 10.0 | 0.90 – 1.10 |
| Tensile (MPa) | Yield (MPa) | Elongation (50mm) | Elongation (200mm) | Reduction of Area |
|---|---|---|---|---|
| 415 – 585 | 205 min | 18% min | – | 40% min |
Alloy Steel 9 Sheets & Plates are available in a wide range of sizes and specifications to meet diverse industrial requirements. These products are supplied in various thicknesses, widths, and lengths. They are available in different conditions such as hot rolled, cold rolled, and heat-treated forms. These sheets and plates comply with international standards such as ASTM, ASME, and EN. Custom sizes and specifications can also be provided as per client requirements.
Alloy Steel 9 Sheets & Plates are widely preferred for their excellent strength, durability, and resistance to high temperatures and pressure. Their chromium-molybdenum composition ensures long-term reliability and consistent performance in critical applications. These sheets and plates help improve system efficiency, reduce maintenance costs, and provide long-lasting performance, making them a trusted choice for industrial and engineering applications.
